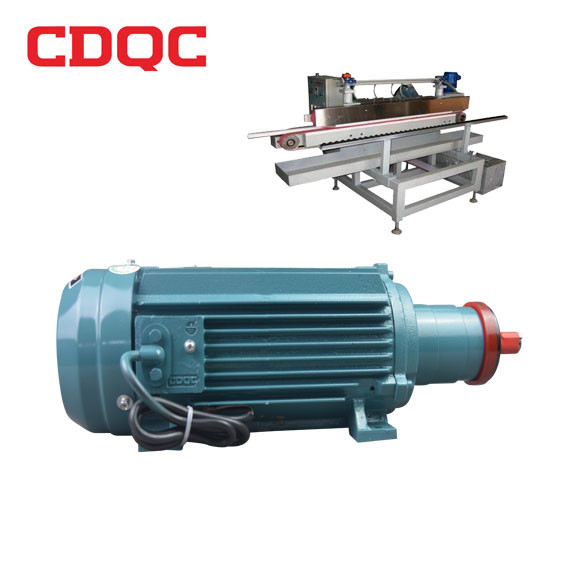

Enclosed 3 Phase AC Motor Longer Lifespan For Glass Grinding Machine
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CDQC |
| Certification | CCC,CE |
| Model Number | UAMT |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton. |
| Supply Ability | 150000 Set/Sets per Month |
Product Details
| Color | As Required | Usage | Universal |
|---|---|---|---|
| Function | Driving | Phase | Three Phase |
| Speed | Constant Speed | Shape | Linear |
| Power | AC | Protect Feature | Enclosed And Waterproof |
| Structure | Other | Port | Shanghai |
| High Light | three phase electric motor,3 phase induction machine |
||
Product Description
Enclosed 3 Phase AC Motor Longer Lifespan For Glass Grinding Machine
Product Description
Product introduction:
UAMT80T series three phase induction motors are suitable for transmissions by which speed-regulation
is needed, are widely used in light industries, metallurgy industries, textile industries, chemical industries,
machine tool industries etc. while fitted with highly accurate sensor, the motors can achieve highly
accurate operation of closed loop.
UAMT80T series three phase electric motor mainly applied to the glass processing industry, glass edge grinding, glass shaping filed.
1, Use high accuracy bearings, axial float & radial run-out ≤ 0.01mm, 100% products passed dynamic balance detection, ensured low vibration and low temperature rising.
2, High accuracy Integrated wheel head stand, Grinding wheel could direct install to the three phase electric motor, cost saving and powerful.
3, Customized grinding head stand, easy to replace the grinding wheel.
4, Special water proof design sealing structure, 0.5mm labyrinth sealing, anti jamming design, with high temperature resistant materials, specialized for all kinds of working site.
5, The three phase electric motor coil is dipped in vacuum environment, Class F insulation, longer lifespan.
6, Voltage: 380V/50HZ (Various voltage&frequency are available, 415V/380V/240/230V/220V/120V/110V, 50HZ/60HZ)
UAMT80T Series three phase electric motor Technical Parameters:
|
Model |
Rated Power (Kw) |
Rated Voltage (V) |
Rated Frequency (HZ) |
Rated Current (A) |
Rated Torch (N.m) |
Rated Speed (rpm) |
Efficiency (η) |
Power Factor
|
TS/TN
|
TMAX/TN
|
IS/IN
|
Weight (Kg) |
|
UAMT80T-2P-1.5 |
1.5kw |
380V |
50HZ |
3.10A |
5.0 |
2830r/min |
81.9% |
0.89 |
3.3 |
3.3 |
6.6 |
26.0kg |
|
UAMT80T-2P-1.75 |
1.75kw |
380V |
50HZ |
3.60A |
5.9 |
2830r/min |
82.3% |
0.90 |
3.1 |
3.0 |
6.6 |
26.1kg |
|
UAMT80T-2P-2.2 |
2.2kw |
380V |
50HZ |
4.40A |
7.4 |
2840r/min |
84% |
0.91 |
3.6 |
3.4 |
7.4 |
28.0kg |
|
UAMT80T-2P-3.0 |
3.0kw |
380V |
50HZ |
5.82A |
10.0 |
2850r/min |
84.3% |
0.93 |
3.8 |
3.4 |
6.4 |
30.0kg |
|
UAMT80T-4P-1.5 |
1.5kw |
380V |
50HZ |
3.72A |
10.3 |
1385r/min |
77.5% |
0.77 |
3.3 |
2.7 |
5.3 |
26.5kg |
|
Electric Input: AC/380V/50HZ/3PHASE(Customized Service is available) Protection Level: IP54/Working Mode: S1/Insulation Class: F/Cooling mode: IC411/Noise70/Vibration Level: N |
||||||||||||
COMPANY INTRODUCTION
CDQC specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade.
