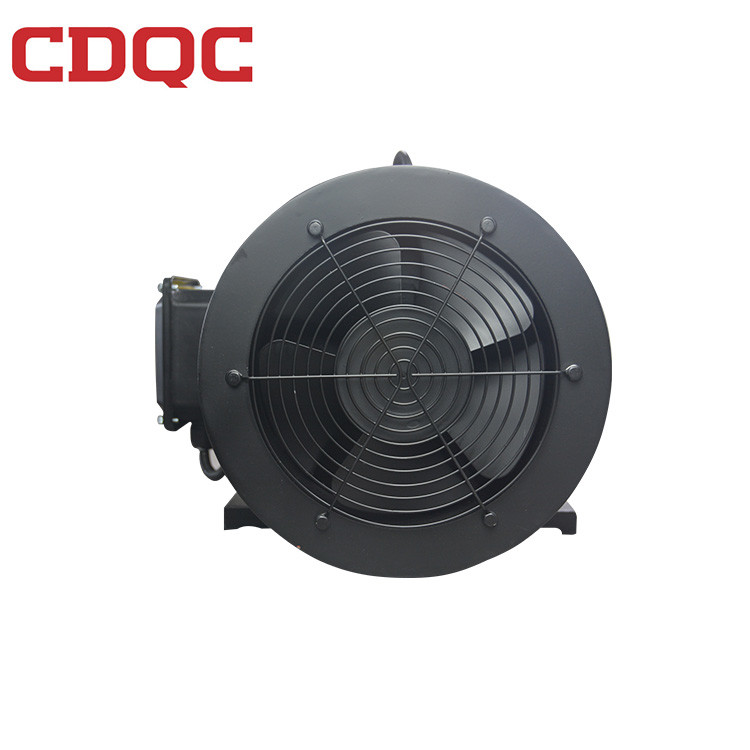

100 Kw Driving Variable Speed AC Motor IEC Standard Vector Control
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CDQC |
| Certification | CE |
| Price | Negotiate |
| Packaging Details | waterproof film & CDQC carton. |
| Supply Ability | 150000 Set/Sets per Month |
Product Details
| Color | As Required | Usage | Universal |
|---|---|---|---|
| Function | Driving | Phase | Three Phase |
| Speed | Constant Speed | Shape | Linear |
| Power | AC | Protect Feature | Enclosed And Waterproof |
| Structure | Other | Port | Shanghai |
| High Light | vsd electric motor,adjustable speed electric motor,iec standard variable speed ac motor |
||
Product Description
100 Kw Driving Variable Speed AC Motor IEC Standard Vector Control
PRODUCT INTRODUCTION:
|
Product Name
|
100 Kw Driving Variable Speed AC Motor IEC Standard Vector Control
|
|
Material
|
Copper Winding, Iron Cast or Aluminum Housing.
|
|
Color
|
According to your request.
|
|
Used
|
Reducer,Air Compressor, Water Pump, Oil Pump, Packaing and Food Mahcinery etc.
|
UABPD Series motors specialized apply for industry of industrial washing machine, standard variable frequency motor, stable, universality, cost-efficiency.
Product Features:
1, Universality- IEC Standard Variable Frequency motors,
2, High efficiency-Specialized for washing machine, powerful torque, Low speed.
3, Stable-adopted mature technology design, classic models.
4, High overload capacity. 150% max to 1 min.
5, Compact structure, smaller size.
6, Wide adjustment range of constant power.
7, Reliable quality, Class F insulation, IP54 Protection level.
Product Specifications
Rated Power: 0.37Kw-30Kw
IEC Standard
Reference speed: 750/1000/1500/3000/4500(r/min)
Stable design, Insulation F grade, IP54 Protection level.
Max Constant power: Minimum Constant power =1:3~1:4
Optional Parts: Encoder, Thermal protector
UABPD Series motor Technical Parameters:
| Model | 90L-4P | 100L-4P | 100L-6P | 112M-6P | 132S-4P | 132M-4P | 160M-4P | 160L-4P | 160L-4P | 180M-4P | 200L-6P |
| Rated Power | 1.5 | 2.2 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 22 |
| Rated Curren | 3.8 | 5 | 4.5 | 6.2 | 10 | 15 | 18 | 23 | 32 | 38 | 55 |
| Rated Torque | 8.5 | 12.4 | 12.7 | 18.6 | 40.35 | 53.8 | 72.95 | 99.48 | 110 | 191 | 210 |
| Referenced Speed | 1800 | 1200 | 750 | 1000 | 750 | 1500 | |||||
| Rated Voltage | 380 | 330 | 330 | 380 | |||||||
| Control Mode | V/F, Vector control | ||||||||||
| Overload Capacity | 150%, 1 min | ||||||||||
| Insulation Level | Class F Insulation | ||||||||||
| Cooling Mode | IC416 | ||||||||||
| Vibration Level | R | ||||||||||
COMPANY INTRODUCTION
CDQC specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade.
