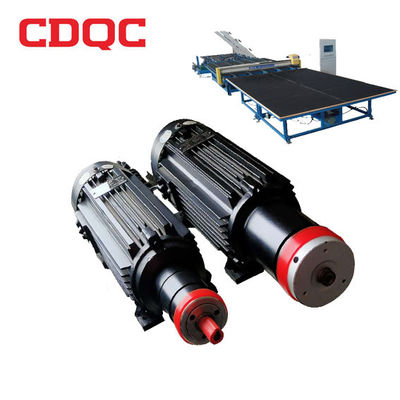

Direct Drive Grinding Machine Motor / 3 Phase Synchronous Motor Energy Saving

  • img.alt
Place of Origin Shanghai, China
Brand Name CDQC
Certification CCC, CE, Other
Model Number UMTP
Minimum Order Quantity Negotiable
Price Negotiate
Packaging Details woodcase, carton.
Product Details
Type Grinding Machine Motor Frequency 60HZ
Protect Feature Drip-proof Phase Three-phase, Three Phase
AC Voltage Ac 380V Efficiency IE 4
Usage Universal Structure Synchronous Motor
Speed Constant Speed Port Shanghai
High Light

high efficiency electric motor

,

grinder motor

,

direct drive grinder machine motor
Leave a Message
Product Description
Factory Supply Grinding Machine Motor Direct drive 3 Phase Synchronous motor energy saving
UMTP series three-phase permanent magnet synchronous grinding motor is suitable for glass deep processing industry, including glass edge grinding and punching.
PRODUCT INTRODUCTION:


Rated Power: 1.5kw-5.5kw.
Reference speed: 1500/3000/4500/6000r/min
Stable design, Insulation F grade, IP54Protection level.
IEC Standard

UMTP series grinding head motor for the glass industry, using inverter control. With wide frequency range of speed regulation. It replaces the traditional asynchronous motor in the glass industry through the excellent efficiency performance.


Product Features:
1, When it works, it runs synchronously with the magnetic field of the rotor and stator

2,Using asynchronous starting mode, the rotor winding meets the requirements of high starting Torque.
3, The motor heats up low and protects the machine.
4, With A short-term overload capacity of 150% overload.
5, Spiral seal and high temperature resistant material.
6, Vacuum impregnation and Class F insulation.

UMTP Series motor Technical Parameters:



Model

 Rated power(KW)


Rated voltage(V)



Rated frequency

(Hz)



Rated current(A)

 Rated Torque(Nm)

Efficiency

(η)



Reference speed(r/min)




Maximum speed(r/min)

UMTP80A-4  1.5kW 1.5 380 60 3.0 7.95 88.1 180 360
UMTP80A-4  2.2kW 2.2 4.2 11.6 89.7
UMTP80A-4 3.0kW 3.0 5.5 15.9 90.3
UMTP80A-4 2.2kW 2.2 120 3.0 5.83 89.7 3600 5000
UMTP80A-4 3.0kW 3.0 4.2 7.95 90.3
UMTP80A-4 4.0kW 4.0 5.5 10.6 90.9
UMTP80A-4 5.5kW 5.5 10.6 14.5 92.1
UMTP80A-4 2.2kW 2.2 150 3.0 4.66 89.7 4500 6000
UMTP80A-4 3.0kW 3.0 4.2 6.36 90.3
UMTP80A-4 4.0kW 4.0 5.5 8.48 90.9
UMTP80A-4 5.5kW 5.5 10.6 11.6 92.1




COMPANY INTRODUCTION

CDQC specializes in the research and development, manufacturing, sales and service of various types of motors, covering an area of 20,000 square meters and having nearly 200 formal staff. We have a professional research and development team. They are constantly committed to the development and innovation of motor technology and our staff accepting serious training can use advanced motor testing platform and other professional testing equipment so that the quality of products have greatly improved. We have to ensure to provide customers with the highest quality and the most credible motor for their machine. At present, CDQC has developed into a new energy transmission base integrating materials, industry and trade.
